Description
Spitfire™ DC 54
The Spitfire DC Custom features an exquisite three bladed design with many rich finish offerings to choose from. The Spitfire DC Custom is available in a 48,54, 60, 64, 72, 84 and 96 inch blade sweep (sold separately), and an optional LED light kit that features the correlated color temperature (CCT) Select functionality (sold separately).
FAN FINISHES
PRODUCT SPECS

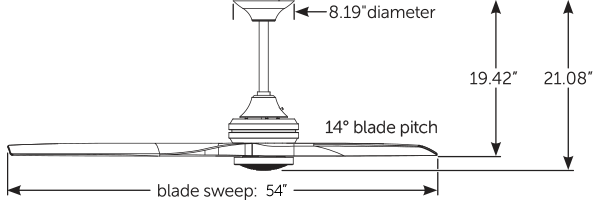

HANGING DIMENSIONS
with 12″ downrod (included)
Net weight: 18.03 lbs.
CONTROL TYPE
TR305 handheld remote included + fanSync WiFi
MOTOR TYPE & SIZE
DC 153 X 25FS
(LIMITED LIFETIME WARRANTY)
Reverse switch on remote
FAN SPEEDS
variable
HIGH-SPEED RPM
186
HIGH-SPEED CFM
6,596
LOCATION RATING
LIGHTING – LK6721BDC** & LK6702
(sold separately)
LK6721BDC**
18W integrated LED
with CCT Select
LK6702
24W integrated LED
double-walled glass
with 5CCT Select
LIGHTING SPECS – LK6721BDC** & LK6702
(sold separately)
lumens: 1,600
CCT: 3,000k/4,000K/5,000K
CRI: 90
Initial lumens: 2,000
CCT: 2,700k/3,000k/3,500k
/4,000K/5,000K
CRI: 90
MOUNTING TYPE
ENERGY GUIDE
AVERAGE
SPEED
TOTAL AIR
VOLUME
4,157 CFM
ENERGY
USE
18 Watts
EST. YEARLY
ENERGY COST
$5
AIRFLOW
EFFICIENCY
227 CFM/Watts
CERTIFICATION
